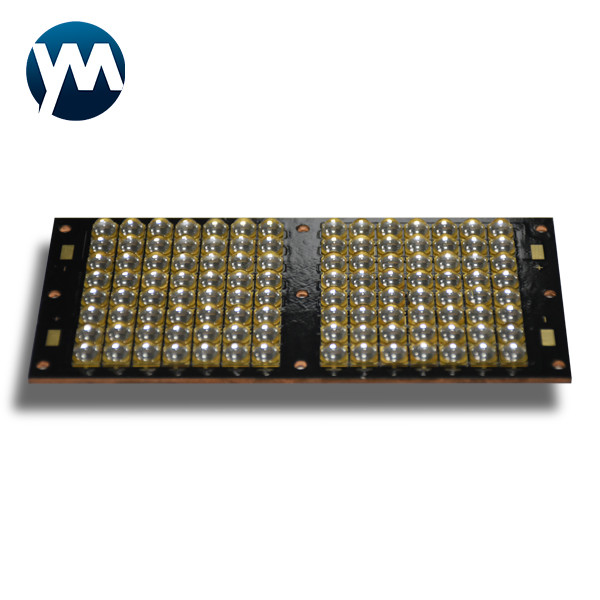

UV Light Module 1100W Ultraviolet Lamps Module UV LED Curing 395nm

  • 1
  • 2
  • 3

Brand Name : YM

Model Number : UV Light Module 12864

Certification : High-tech Enterprise Certificate

Place of Origin : CHINA

MOQ : Negotiate

Price : Negotiate

Payment Terms : T/T

Supply Ability : 100000

Delivery Time : 7-10 work days

Packaging Details : Carton

Product Name : UV Light Module 12864

Power : 1100W

Module Size : 128mm*64mm*2.0mm

Luminous Size : 49mm*57mm*2

Voltage : 52-60V*2

Current : 7-9.8A*2

LED Chips : Seoul, LG, Epileds

Encapsulation process : High temperature quartz lens package lamp

View Angle of the Lens : 30, 60, 90, 120, 180degree

Warranty : 1 Year

Contact Now

UV Light Module Product Description

The UV LED module can be water-cooled or air-cooled.
Various powers, sizes and circuits can be customized according to your requirements, including mixed wavelengths.
UV LED lamp beads are consumables. Please use the lamp beads reasonably to extend the service life,
so as not to burn the lamp beads when the current and voltage are too high.
It is suitable for curing of various UV printing industries, paints, UV inks, UV glues, and touch screens.
We can provide you with customized products.
Product Name UV Light Module 12864
Power 1100W
Color UV
Number of lamp beads 112 pcs
Diode type 6565/6868 smd
Lens Material of Diode Silica gel or quartz
View Angle of the Lens 30, 60, 90, 120, 180degree
Module size 128mm*64mm*2.0mm
Luminous Size 49mm*57mm*2
Wavelength 365nm,385nm,395nm,405nm
Voltage 52-60V*2
Current 7-9.8A*2
Chip Material Seoul,LG,Epileds
Encapsulation process High temperature quartz lens package module
Module material 2.0mm Copper substrate
Lifespan (hours) 15000
Warranty 1 year
Application Apply in various UV printing industries, painting,UV inks, UV glues, and touch screens.
Place of Origin Shenzhen, Guangdong, China

UV Light Module 1100W Ultraviolet Lamps Module UV LED Curing 395nmUV Light Module 1100W Ultraviolet Lamps Module UV LED Curing 395nmUV Light Module 1100W Ultraviolet Lamps Module UV LED Curing 395nm

Why Choose Us
1) Quality Control
Our manufacturing team is based of highly skilled professional which check quality of every product before shipping.
2) Customization options
We provide customized products according to your needs.
3) Post-sales customer support
We provide trainned customer service personal for our customers to solve all your problems.

Attention should be paid to welding high-power UV LED:

1) The welding time should not exceed 3S;
2) The welding temperature should be lower than 260 degrees Celsius.
3) Please make sure that the electrical parameters such as voltage and current do not exceed the rated current parameters of the product.
4) Take good heat dissipation measures, especially high-power UVLEDs, and try to ensure sufficient heat dissipation area.
5) In order to extend the service life of UV LEDs, it is recommended to use a stable constant current drive power supply or IC instead of a constant voltage drive power supply or IC.

If you have other needs, please contact us to provide you with the best solution.

Thank you for your attention.
